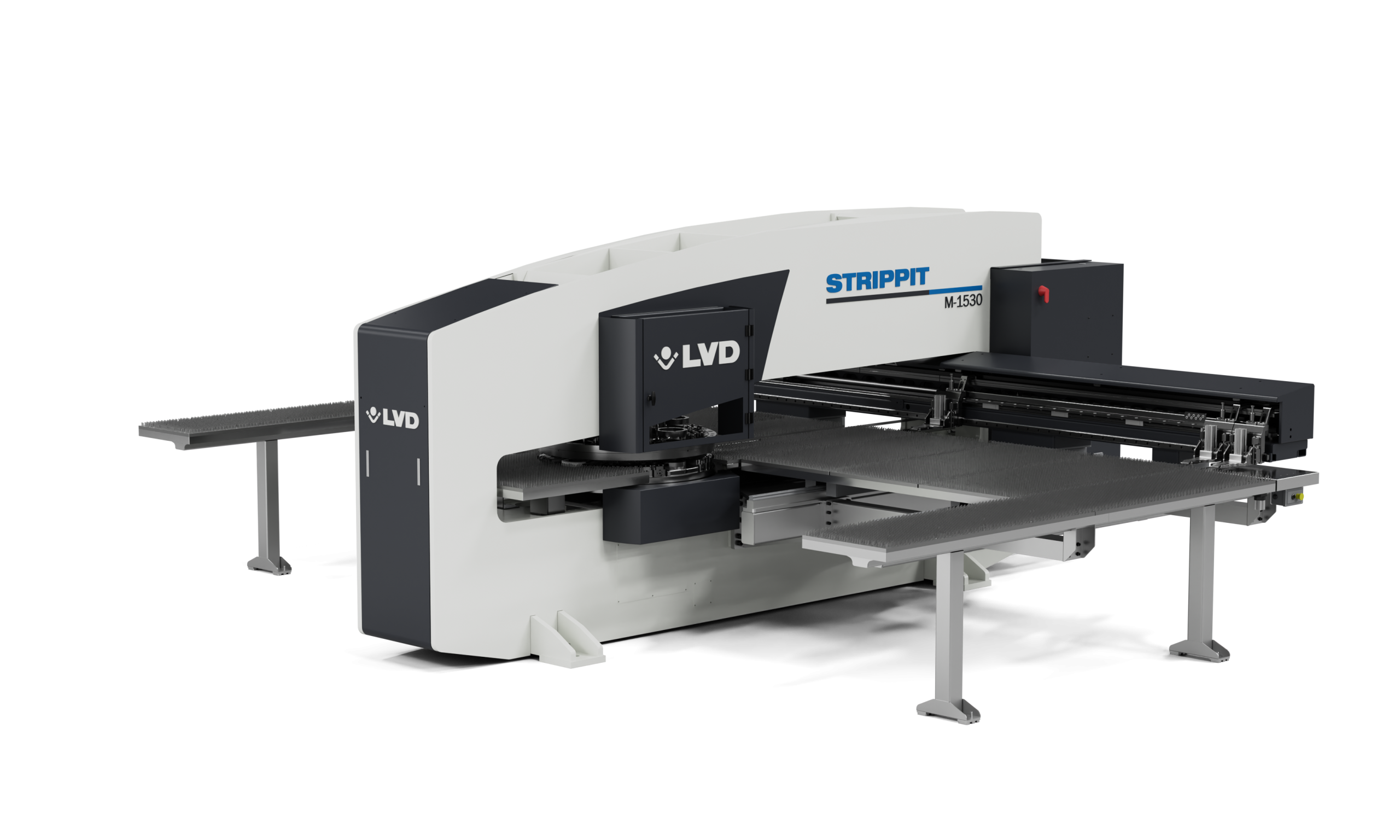

Strippit M offers a versatile 47-station turret – the largest turret capacity of any machine in its class. Equipped with features like Smart Stroke® and Smart Clamp to automatically optimize machine output and material utilization, this 20-ton punch press offers large capacity and is perfect for long production runs. It delivers 400 hits/min on 25.4 mm, 900 hits/min on 1 mm centers.
Features
- Large 47-station turret offers versatility for punching and forming with three 3.5” auto-index stations.
- Large feed clearance of 0.984” between the upper and lower turret delivers more forming capacity.
- Energy Reduction System minimizes energy consumption.
- Unique Smart Stroke® system automatically optimizes the ram stroke for the highest productivity.
- Smart Clamp feature automatically detects exact clamp locations to maximize material us.
- Heavy-duty construction with an advanced table positioning system ensures high accuracy, repeatability.
- Hardened steel guide bushings provide accurate punch and die alignment and are keyed to accept shapes in every station.
- LVD Touch-P interface is icon-driven for ease of use.
Options:
- ABS tool lubrication system ensures efficient tool stripping, extended tool life
- Combination steel ball and brush table for increased sheet carrying capacity
- Additional work clamp available for Strippit M-1225, Strippit M-1525
- MOVit automation: PA Load-Unload for loading/unloading, Compact Tower (CT-P) for loading, unloading and material/parts storage
Learn more:
https://www.lvdgroup.com/en-us/punch-presses/turret-punch-presses/strippit-m
