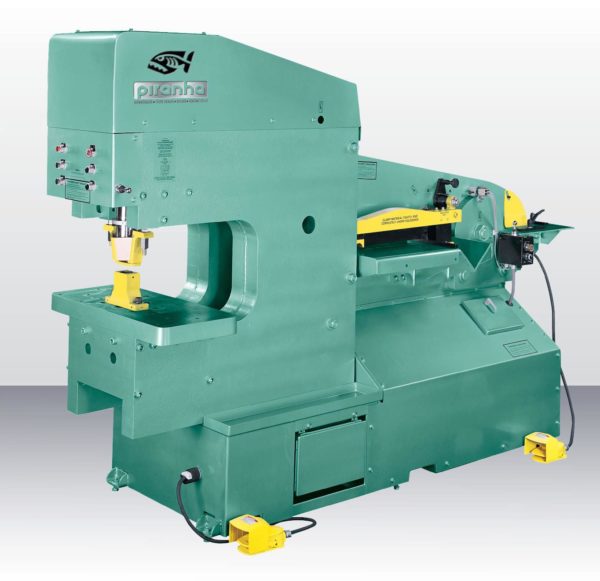

When you would benefit from two simultaneous operators (ie: punching and shearing at the same time) – the Piranha Dual Operator Ironworker fits the bill!
Two Models Available: PII-88 and PII-140
Features
Punching.Shearing.Bending.Notching.
- Large, Open Punch Station—Allows unlimited range of optional equipment and special tooling
- Longer Strokes/Deeper Throat Depths
- Large Platen—For options and special tooling applications
- Long Bending Capability—Optional bending attachments up to 48″
- 5 Punch and Die Sets —Appropriate to machine tonnage
- One Chip Bucket
- Automatic 3-Position Urethane Hold-Down on Plate, Angle and Bar Shear Stations
- Dual Operator Controls—Punch station and shear/coper station. Each station has both a foot pedal and joystick
- Front and Rear Three-Position Electric Joystick Controls
- Set of Plate Shear Knives (4-way)
- Set of Angle Shear Knives (8-way top/4-way bottom)
- Set of Coper Knives (2-way top/4-way bottom)
- Set of Three Coper Table Guides
PII-88 PII-140
| Throat Depth | 9″ | 20.5″ |
| Open Height | 14″ | 14″ |
| Closed Height w/o Die Block | 7-3/4″ | 7-3/4″ |
| Stroke Length | 7″ | 7″ |
| Platen Table Size (D-W) | 11″ x 38″ | 16″ x 36″ |
| Punch Hole Size (Max. Material) Max. Hole Size (Material) | 88 Tons 1-1/16″ (1″) 5″ (3/16″) | 140 Tons 1-3/8″ (1-1/4″) 5″ (5/16″) |
| Plate Shear | 24″ Long 3/4″ x 8″ 5/8″ x 12″ 1/4″ x 24″ | 20-1/2″ Long 1″ x 14″ 3/4″ x 18″ 1/2″ x 20″ |
| Angle Shear | 5″ x 5″ x 3/8 **4″ x 4″ x 1/2″ | 6″ x 6″ x 5/8″ |
| Bar Shear Round (min. to max.) Square (min. to max.) | 1/4″ to 1-1/2″ 1/2″ to 1″ | 1/2″ to 2″ 1/2″ to 1-3/8″ |
| Coper-Notcher (Tons) (Max. Material) | 56 2-3/4″ x 4″ x 1/4″ | 95 4″ x 6″ x 3/8″ |
| Optional Bending Attach. | Optional 24″, 36″, 48″ | Optional 18″, 24″, 36″, 48″ |
| Punch End Strokes Per Minute | 19 @ 1″ N/A | 24 @ 1″ N/A |
| Work Station Height Approx. | 41″ | 44″ |
| Hydraulics Pump GPM System R/V PSI | 7.5 3500 | 15 3500 |
| Fluid Capacity (gal.) | 20 | 40 |
| Motor Std. 230/460 3 Ph. 1800 RPM Opt Phase & Voltage Available | 10 HP 3 Ph. | 20 HP 3 Ph. |
| Dimensions (Net) W-L-H Approx. | 38″ x 90″ x 72″ | 38″ x 120″ x 85″ |
| Weight (Net) Lbs. Approx. | 4700 | 11,930 |
GENUINE PIRANHA ACCESSORIES & TOOLING AVAILABLE:
- Pipe & tube notching attachment
- Channel die block
- Bending attachment
- Channel shear
- Mechanical & electrical backgauges
- 1.5″ oversize punch attachment
- 28xx punch attachment
- Roller feed tables
- Press brake tooling holders
- Quickset gauging tables
- High quality tooling formulated to extend your tooling life and laser-engraved for easy identification
