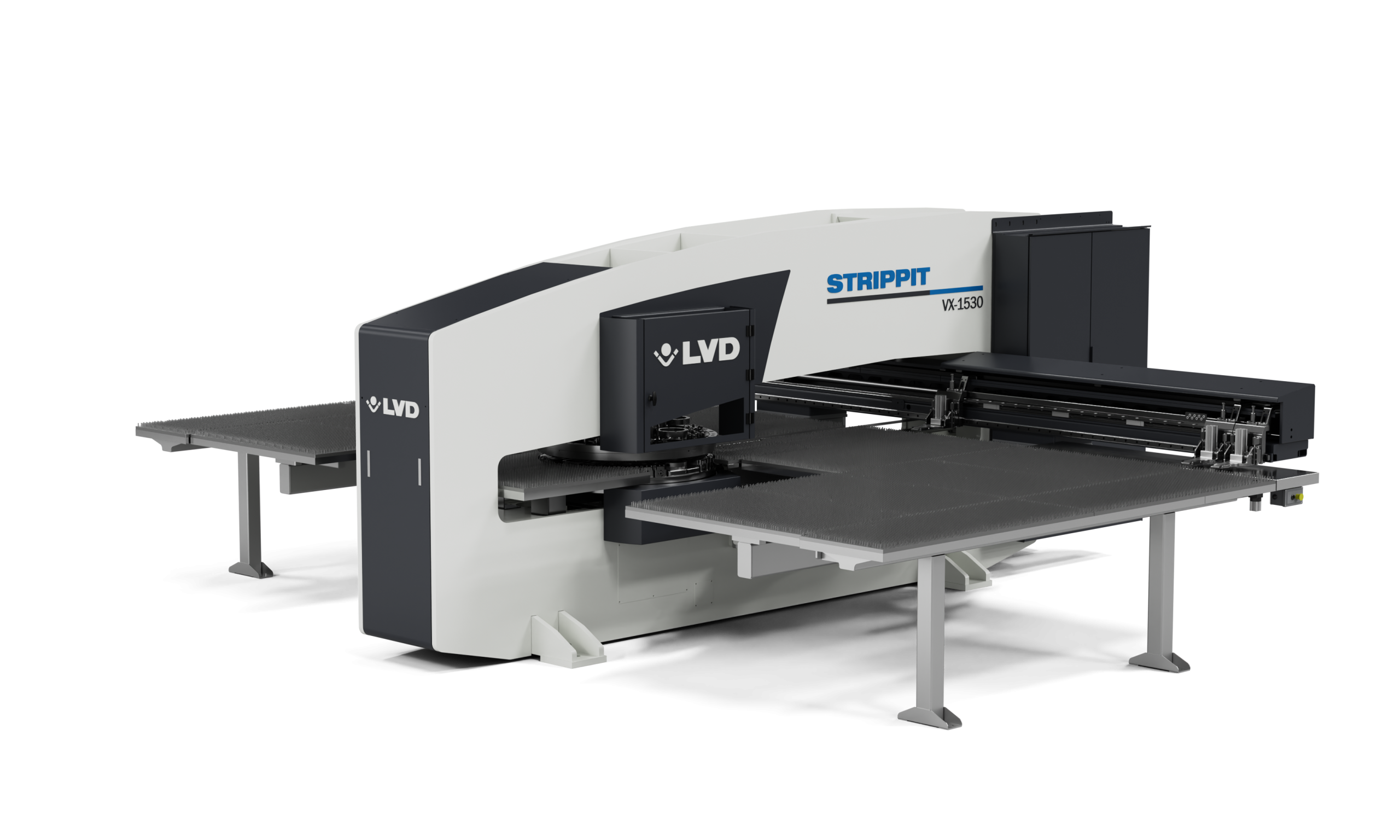

Strippit VX is a full-featured 20-ton punch press with heavy sheet carrying capacity to tackle a range of punching applications. It features a large turret with 48 stations and four 3.5” auto-index stations. Strippit VX delivers a high hit rate of 920 HPM on 1 mm centers. Available in table size formats: 49” x 60”, 49.2” x 98.4”, and 60” x 120”.
Features
- 48-station turret includes four 3.5” indexable stations for large tooling capacity.
- Fully bushed turret assures superior punch and die alignment throughout the life of the machine.
- Servo controlled hydraulic ram system generates high hit rates and reduces energy consumption.
- Stress-relieved, single-piece bridge frame ensures machine accuracy and repeatability.
- Three programmable and relocatable work clamps are automatically positioned and can be automatically relocated during a punching cycle for maximum sheet utilization.
- Smart Stroke® technology automatically defines the best tool hover height to optimize hit rates.
- Quick-change die holders can be changed in 15 seconds.
- Programmable parts removal chute evacuates parts up to 17.7” x 19.7”.
- An easy-to-use, LVD Touch-P control is icon-driven for easy use.
Options:
- ABS automatic tool lubrication system
- Auxiliary Hydraulic Cooler Kit; Auxiliary Electrical Cabinet Cooling Kit
- Parts conveyor
- Rotary Binsort
- MOVit automation: PA Load-Unload, Compact Tower (CT-P) for material storage and retrieval, Flexible Automation (FA-P) for advanced loading/unloading and part picking, Tower Automation (TAS) or Warehouse Automation (WAS) systems
