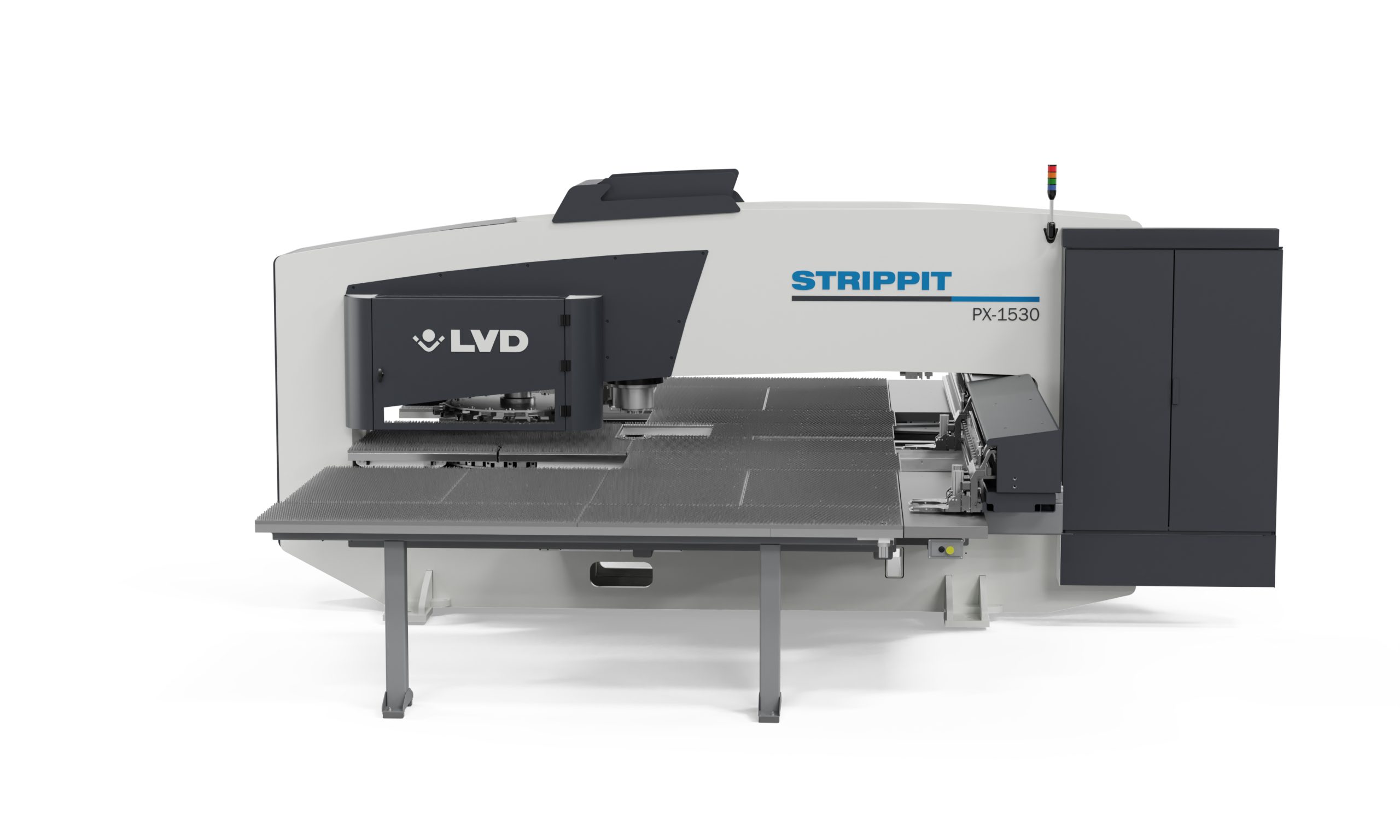

Punch, bend, tap and form all on one machine. Strippit PX is a highly versatile 20-ton punch press featuring a single-head design able to accept up to 200 tools – all tool rotation allows the flexibility to rotate each tool a full 360 degrees. With the Strippit PX, form and bend materials up to 3”, punch up to .250”. Offered in two table configurations: 49.2” x 98.4” or 60” x 120” formats.
Features
- 20 tool stations are fully indexable for added tooling capacity; accept multitools and T-style tooling.
- Single punch head system uses a retractable die to virtually eliminate any workpiece scratching.
- Three fully programmable and relocatable work clamps automatically position and relocate for optimal material utilization.
- Energy Reduction System reduces energy consumption.
- Unique Smart Stroke® system automatically optimizes the ram stroke for the highest productivity.
- Programmable parts removal chute offloads parts up to 19.7” x 20.7”.
- LVD Touch-P control features a user-friendly graphical interface for easy operation.
Options:
- Opti-Bend tool system to bend small boxes, brackets, knockouts, louvers
- Quick Tap Tool system for fully automatic tapping
- Extended Tool Magazine (ETM) holds up to 40 additional tools
- Parts conveyor
- Rotary Binsort
- Sheet lubrication system
- MOVit automation: PA Load-Unload, Compact Tower (CT-P) for material storage and retrieval, Flexible Automation (FA-P) for advanced loading/unloading and part picking, Tower Automation (TAS) or Warehouse Automation (WAS) systems
